SPIRITED 380

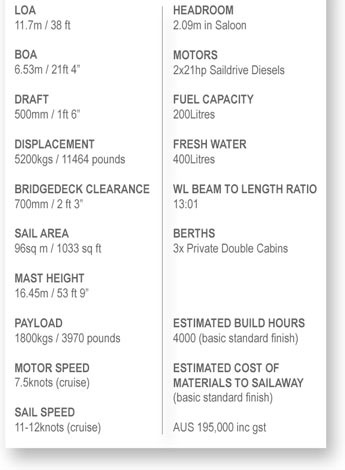

LENGTH 11.7m  |  BEAM 6.53m  |  BERTHS 3 Doubles |  USEAGE Blue-water  |  KIT OPTIONS DuFlex Balsa/Foam, Plain Foam

On the water the Spirited 380 is pure joy. Its stylish lines, comfort and functionality compliment its growing reputation as a ‘sailing machine’. Performance and reliable open ocean capabilities, balanced with luxury cruising appointments and generous cabin space create the ultimate catamaran package.

The whole family can enjoy the Spirited experience without compromise and in full safety. Designed with long sea journeys in mind the Spirited 380 addresses all aspects of life on the water. With the cruising option the Spirited 380 promises a relaxed journey with more control, security and reassurance whilst the sports option adds the thrill of excitement and speed.

Spirited Designs can offer various model options for the Spirited 380: sport, cruising and charter as well as CE Certification for the European market. Through the combination of quick-build assembly, latest advanced materials and modern, attractive lines, the Spirited 380 is a breakthrough in modern production boats and proves there is a fine art to producing a classic!

The Spirited 380 is a good balance of fresh modern styling, excellent sailing performance and a generous amount of internal volume for a good functional layout. Built using lightweight materials will help to reduce bridgedeck slamming and improve motion at sea, the boat will lift easily over waves without that sluggish momentum often experienced on heavy cats. The size
and weight of this design is ideally suited to short-handed crew.

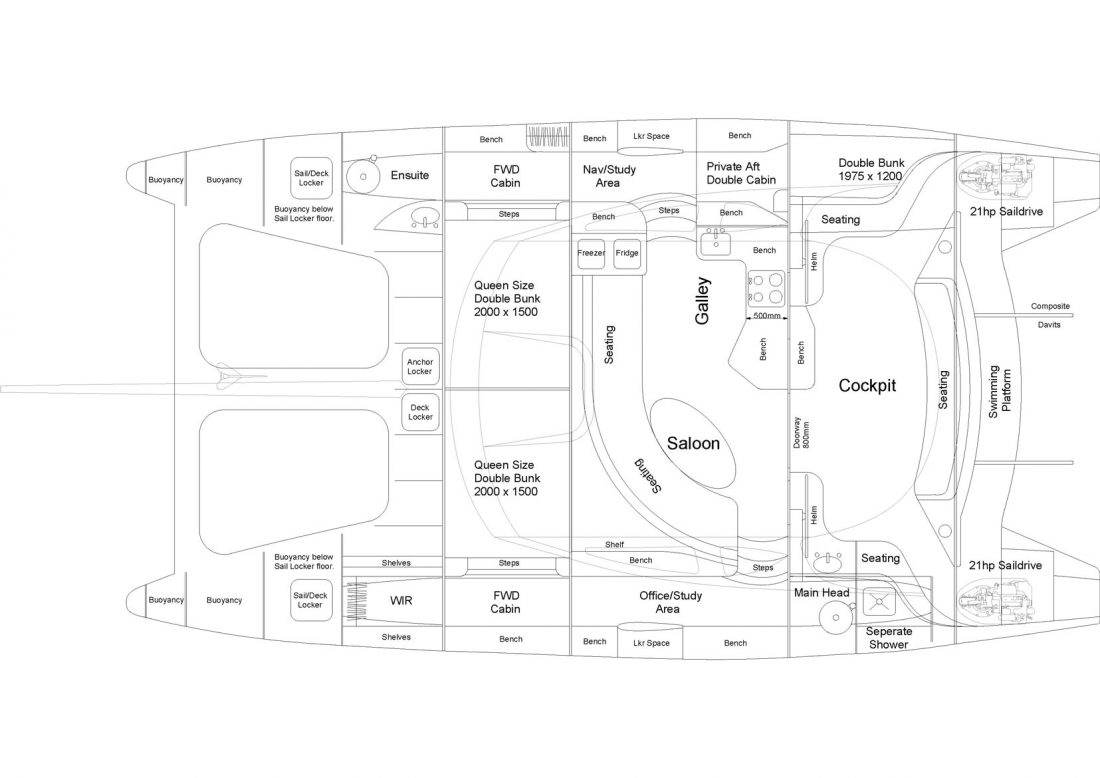

Access from the dock is through open deck level walk-through transoms stepping onto uncluttered aft steps. These steps are close to the water and flow onto the aft swimming platform which runs across between these areas. The cockpit is open plan and easy to traverse incorporating a wide radial aft seat across the back. The extended cabintop provides good coverage over the cockpit and enhances the indoor/outdoor environment.

Social Focus The aft bulkhead is open with a large doorway and windows so that vision is good into the saloon. The saloon is spacious with the galley opposite. This creates a very social atmosphere with the cook being central to the saloon and cockpit.

Down Below The accommodation in the hulls is generous with two queen sized cabins forward, one with an ensuite and the other with a walk-in-wardrobe. The bunk area in these cabins is particularly spacious with more than enough head height for sitting up in bed. Aft there is a private double cabin to Starboard and a head with separate shower opposite.

Decks On deck the walking areas are all flat and open beginning with the side decks which area wide and offer good safety. The foredecks are level with the tramps and again are open and uncluttered. To work at the base of the mast the footing is flat and secure.

Easy Build The Spirited 380 has been designed very much with the build method and material in mind. The clever moulded sections fit together with flat panel composite panels to create a seamless stylish vessel.

Since the initial release of this design in 2006 more moulded parts and options have been added to this to result in one of the most comprehensive kit packages on the market.

Kit Packages

Kit packages are available for this design and the options can be viewed in the Spirited 380 Kit page

Construction plans only

The plans can be purchased separately and the materials can be sourced by the client at their own pace. A list of the required and recommended materials is provided.

Cad-drawn colour construction plans are supplied in an A3 sized booklet of high detail specifically suited to amateur building.

Study Plans

Study Plans are available for this design, please send a request via our Contact page.

How to Order your Spirited 380?

Purchase Order
Please complete the online contact form. Online Form

Order Confirmation
On receipt of your order form we will provide you with an order confirmation with the costs and deposit requirements.

Payment
Generally a deposit is made at order and a final payment is made prior to dispatch. Payment for the larger design range is generally made via direct deposit and these bank details are provided on your order confirmation. Payments are made in Australian dollars.

Delivery
Estimated delivery times is provided on the Order confirmation. We will contact you with a delivery date and delivery options once the kit has been ordered.

Details

Contruction Plans
Printed to order with customised cover sheets and any other design requirements to meets the clients requests.

Kits
Pre-cut to order as standard or to meet any specific customised requirements.

Components
Built to order as standard or to meet any specific customised requirements.
