SEASCAPE

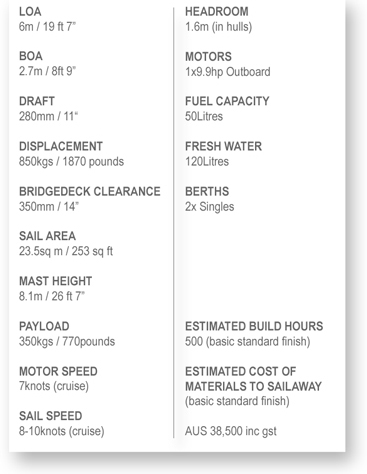

LENGTH 6m   |   BEAM 2.5m   |   BERTHS 2 Singles   |   USEAGE COASTAL   |   KIT OPTIONS DuFlex, Plywood, Plain Foam

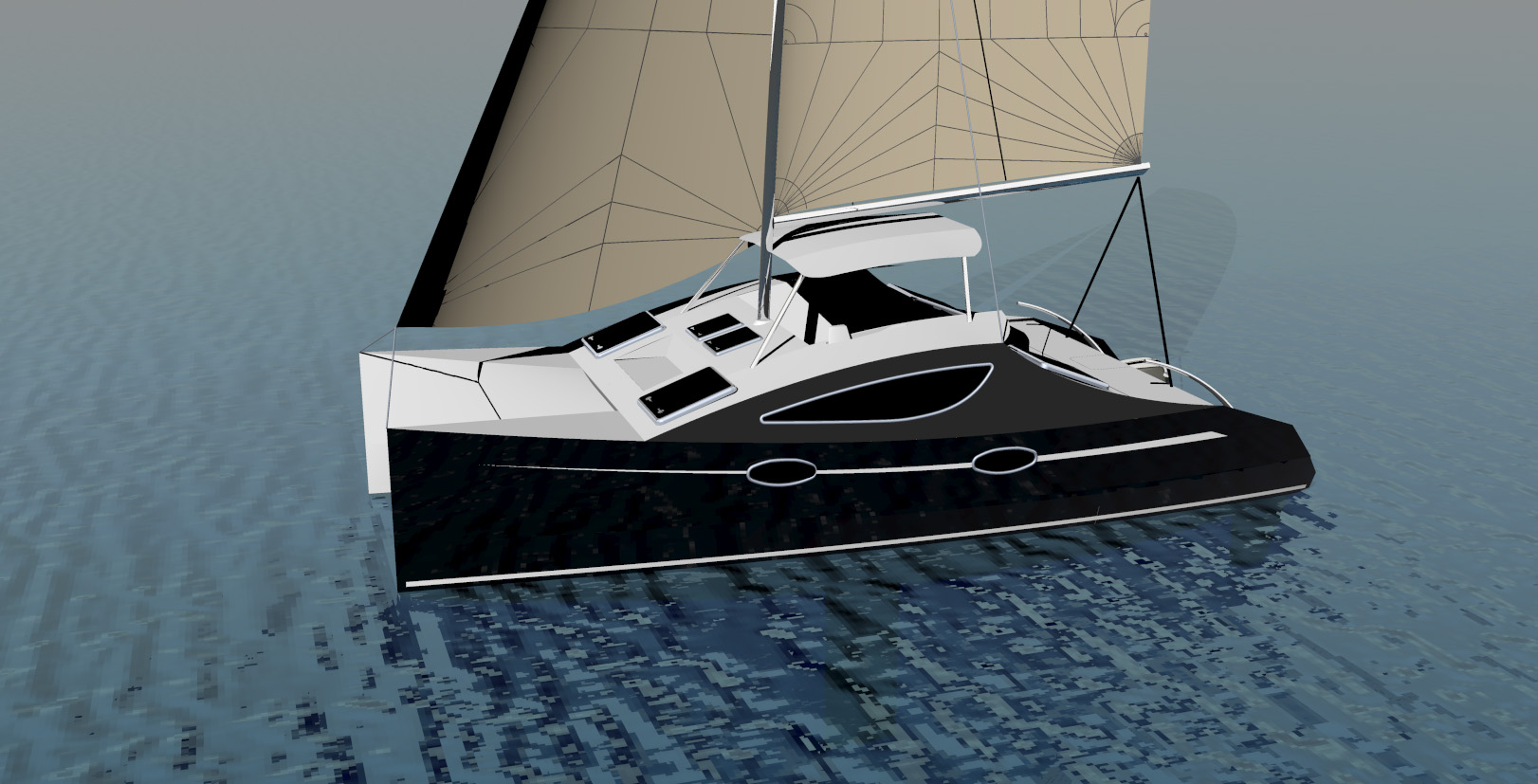

The Seascape design will suit any entry-level multihull enthusiast offering many features found on a large cruising catamaran. The underwater hull design is aimed at efficiency with a reasonable payload capacity enabling extended cruising with coastal open water capabilities. The sailing performance will impress but is balanced against the surprising amount of space and comfort this design offers. The saying ‘good things come in small packages’ applies to this design with this feature-packed boat offering a good alternative for those itching to go cruising but still saving for that ‘ideal’ big boat. The trailerable aspect of this design allows for easy delivery and storage.

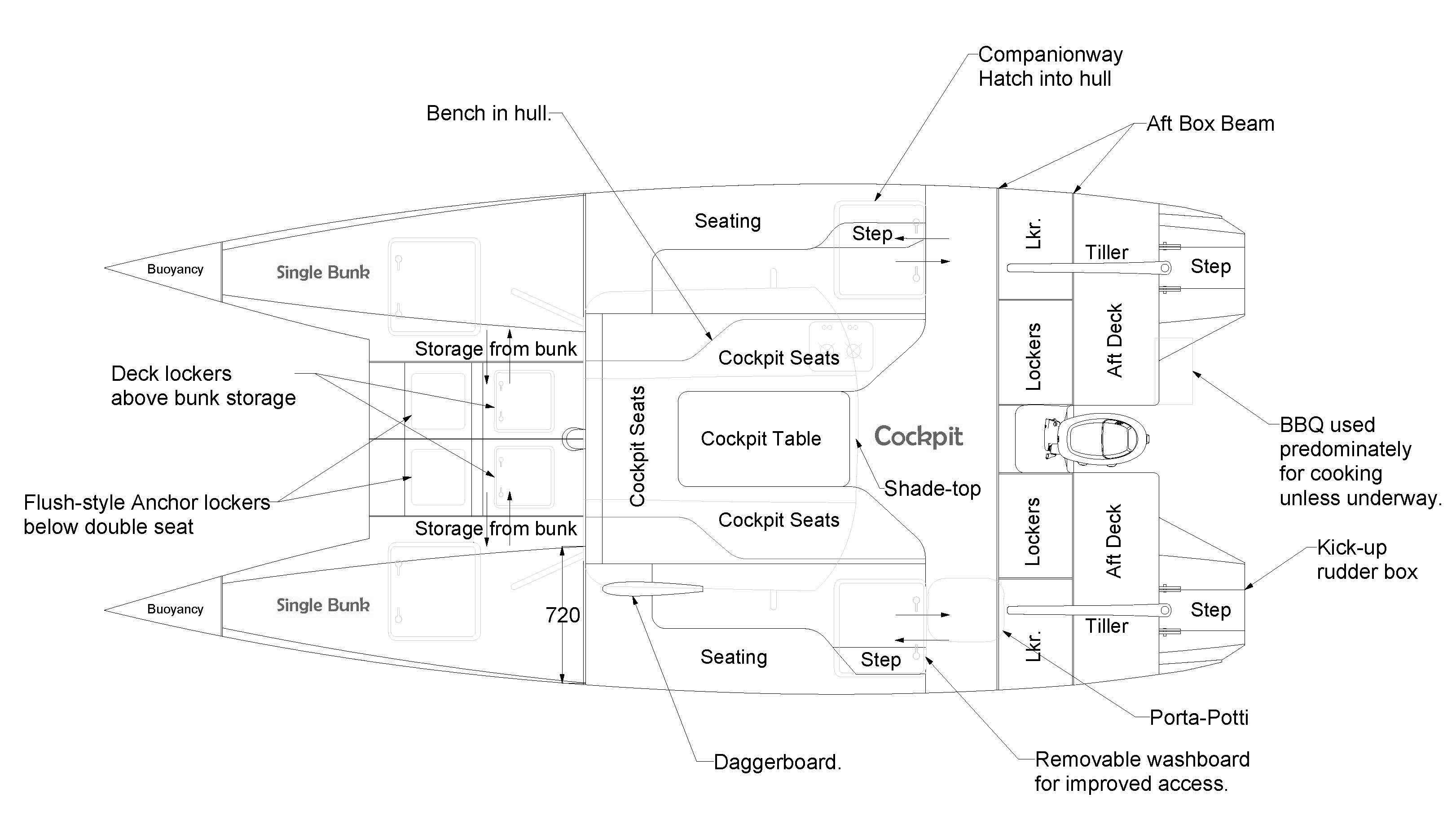

This is predominately an open boat ideally suited to tropical conditions and outdoor living. The open cockpit design is spacious enough for groups of up to 6 to 8 people with comfortable seating around the table for 5 adults.

The companionways into the hulls are accessed from the safety of the cockpit and are designed with off-the-shelf deck hatches to reduce the work and complexity typically involved in building a secure watertight hatch.  An integral box beam creates the back of the cockpit area and is the division between the cockpit and the aft deck. The box beam doubles as a seat the full width and also for the helmsperson each side.

Open aft Deck A unique feature of this design is the open aft deck directly behind the box beam. The well-powered 9.9hp high-thrust outboard engine is mounted centrally nestled into the deck and box beam for maximum protection.  The aft ends of the hulls have convenient low-set steps for easy access to the water.

Socialising Socialising and recreation have been well-considered even on this compact design with a stylish hard shade top sheltering the cockpit seating area. This could include all-weather side and front screens for rain and spray protection. While at rest a boom cover would provide shelter for the entire cockpit.

Extra berth The dinette could be easily converted to an extra double berth if required providing sleeping arrangements for 4 adults. The foredeck and tramps are also a spacious area to relax and lounge with a moulded two person seat set into the deck area in front of the mast.

Build System The build system has also not been forgotten with simple surfaces and shapes to this design. Only flat panels are used in the construction with no complex shapes to contend with. If a kit system is chosen this boat is very quick and easy to assemble with all parts cut to size. Material options include cost-effective Gaboon plywood, plain foam or Duflex (choice of balsa or foam core).

If on a budget, most 16 to 18ft off-the-beach catamaran rigs will suit this design or could be customized to suit. These can be bought cheap and could even be a temporary rig to get you on the water in the interim until a new rig becomes affordable.

Kit Packages

Kit packages are available for this design and the options can be viewed in the Seascape Kit page



Construction plans only

The plans can be purchased separately and the materials can be sourced by the client at their own pace. A list of the required and recommended materials is provided.

Cad-drawn colour construction plans are supplied in an A3 sized booklet of high detail specifically suited to amateur building.

Study Plans

Study Plans are available for this design, please send a request via our Contact page.

Purchase

Plans only are available for purchase through our online eshop or you can contact us

Seascape Digital is available from our eShop.
